Overview
The Pinnacle Navigator Pro Electric Wheelchair offers enhanced comfort with an electric reclining backrest and an optional wireless attendant remote. Powered by a 250W brushless motor and 24V 20Ah lithium battery, it delivers smooth performance with a maximum range of up to 26 km.
Key features
- Remote control: wireless attendant remote controller available
- 250W brushless motor: powerful, quiet and energy-efficient performance for smoother operation and longer lifespan

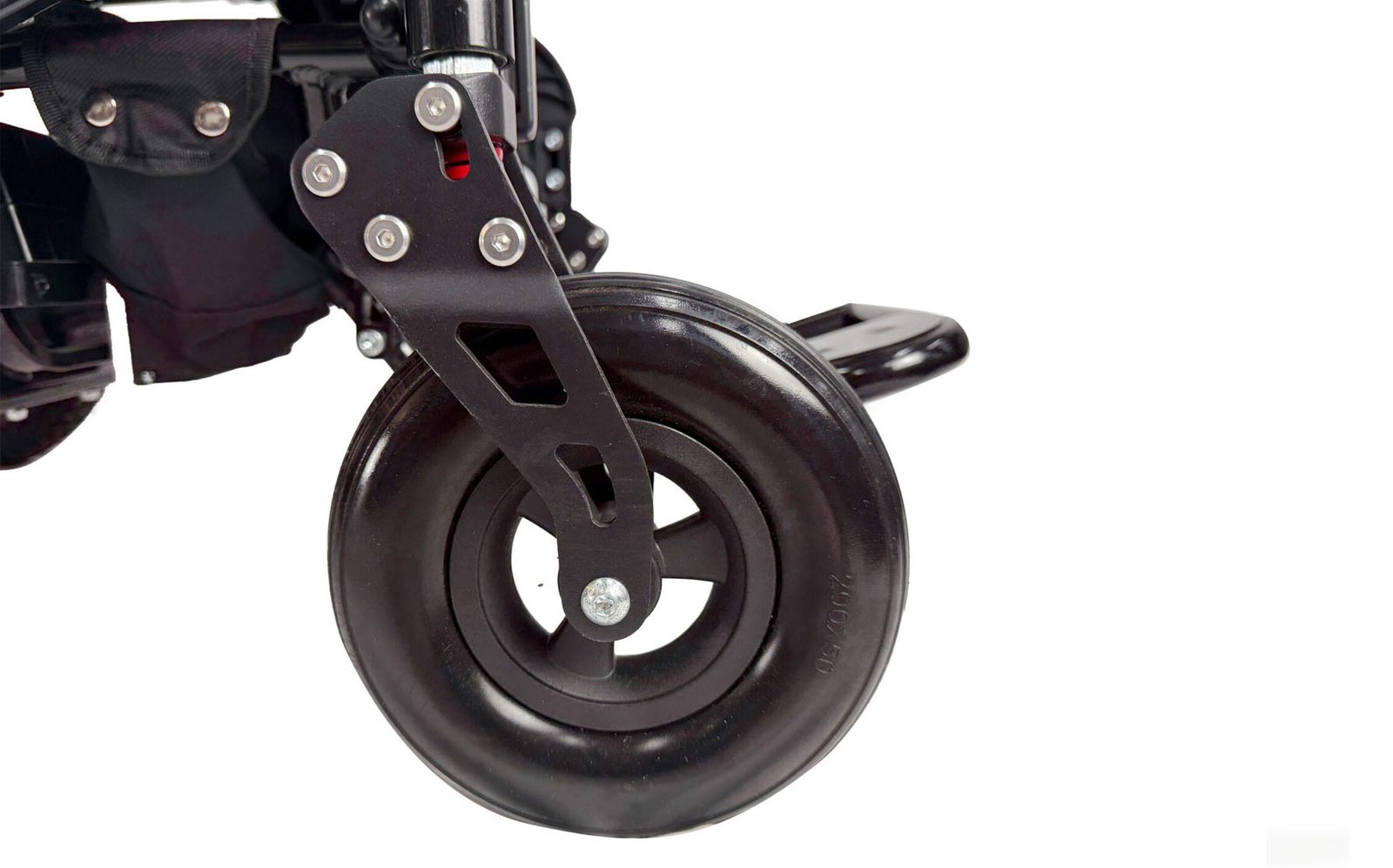

- Enhanced comfort: extra-thick cushion and front wheel suspension for a smoother ride
- Electric reclining backrest: adjusts for personalised comfort and relaxation

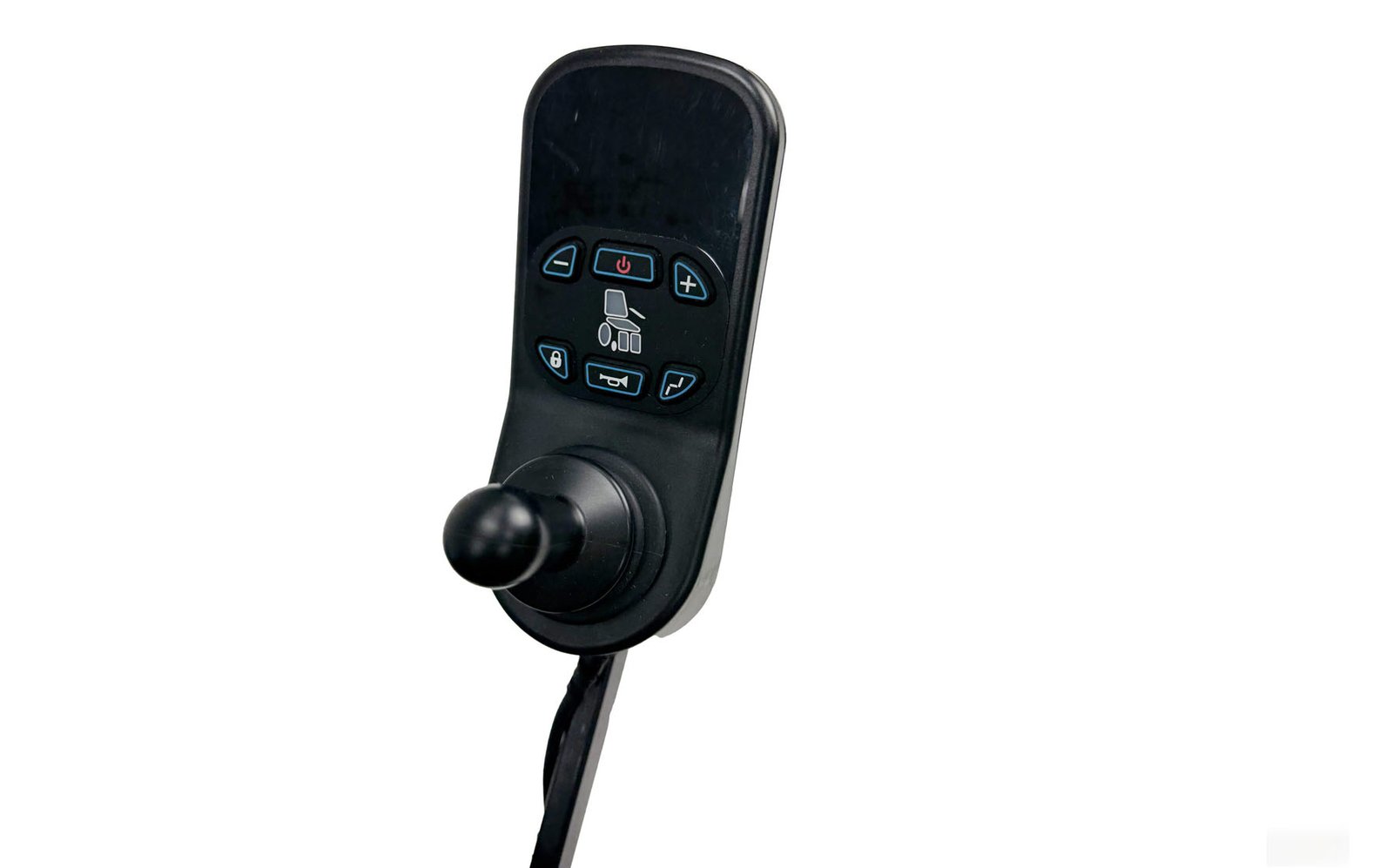

- Switchable controller for flexible operation
- Flip-up footplate & armrests to support easier transfers

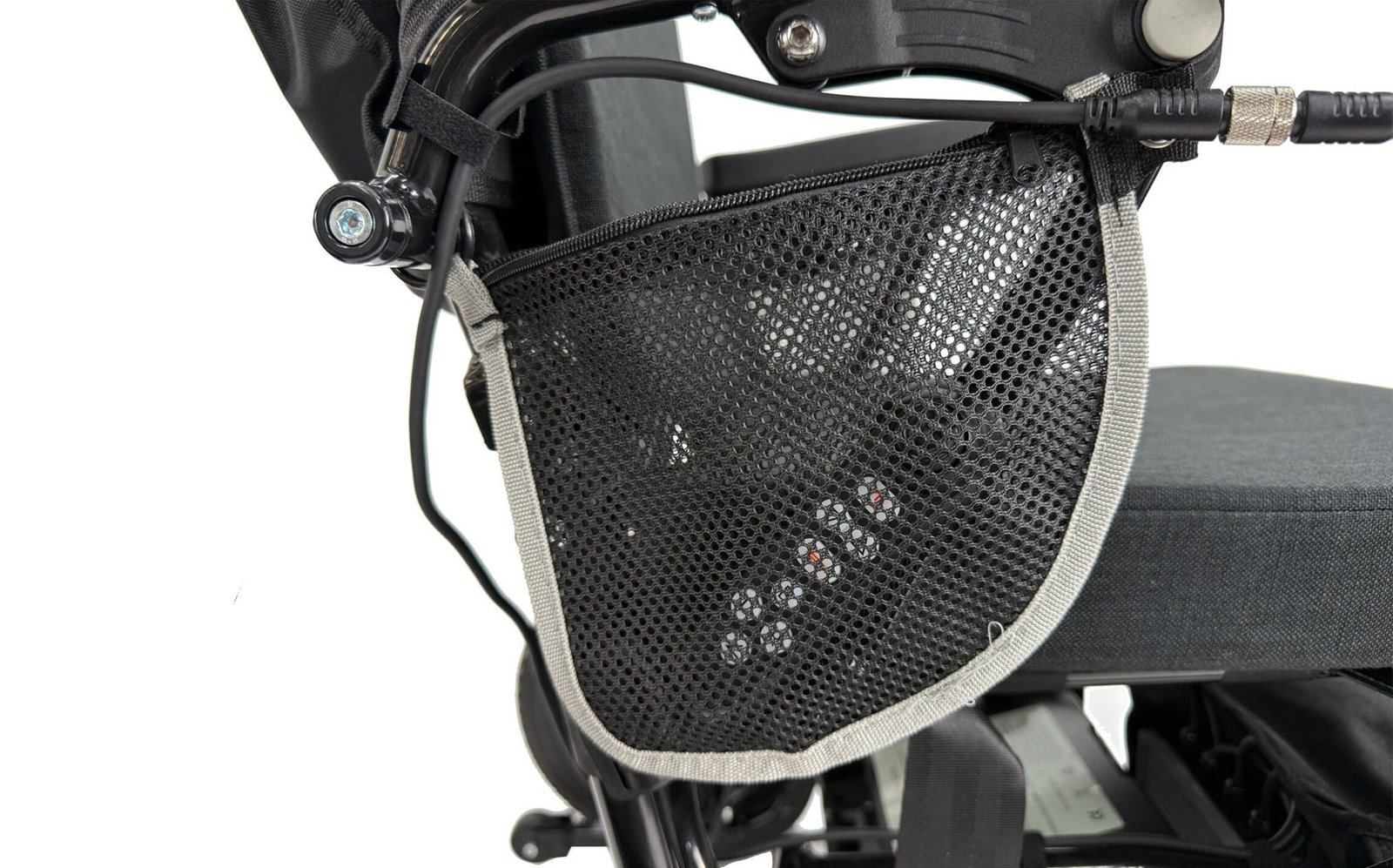

- Generous storage: includes 4 storage bags

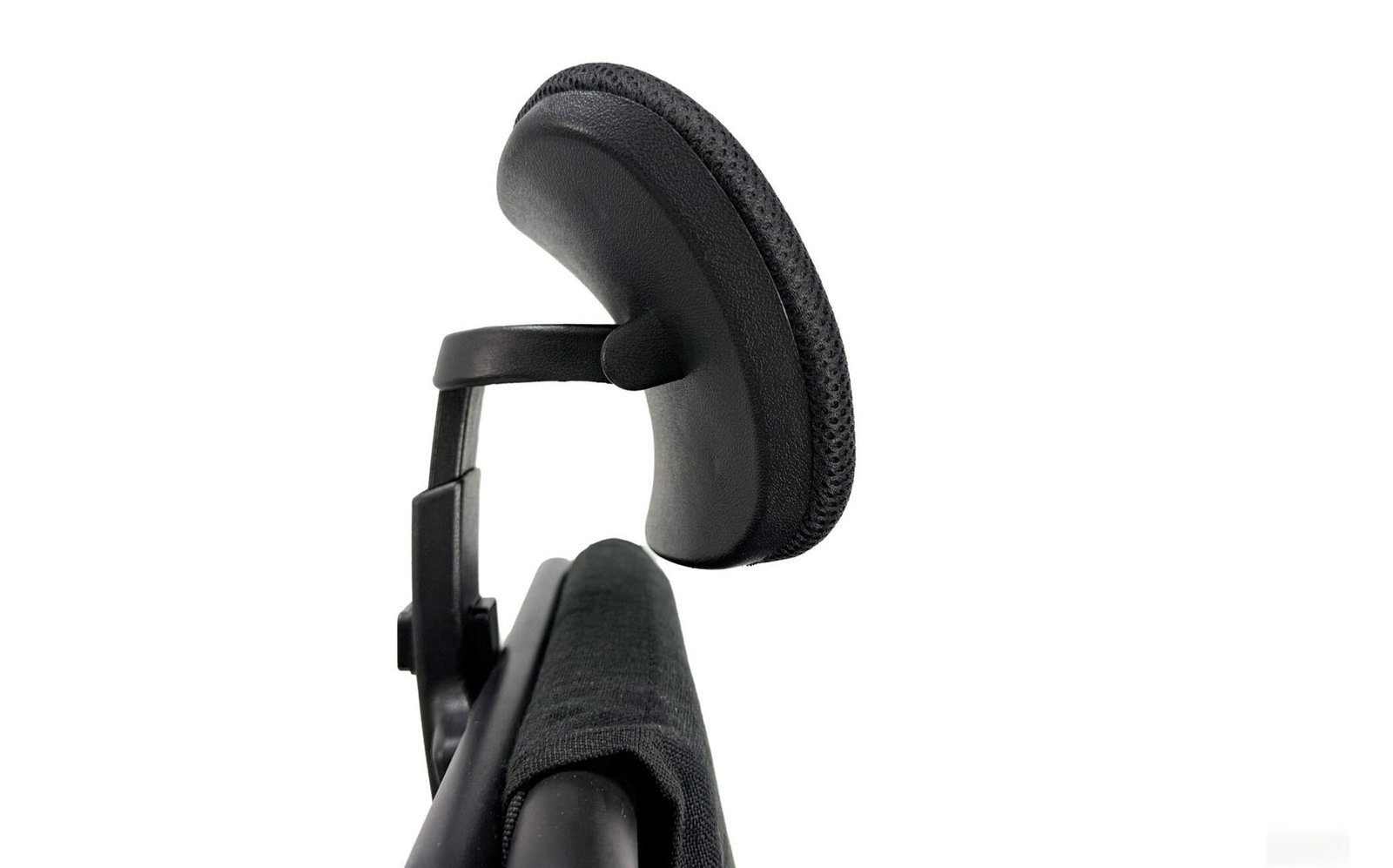

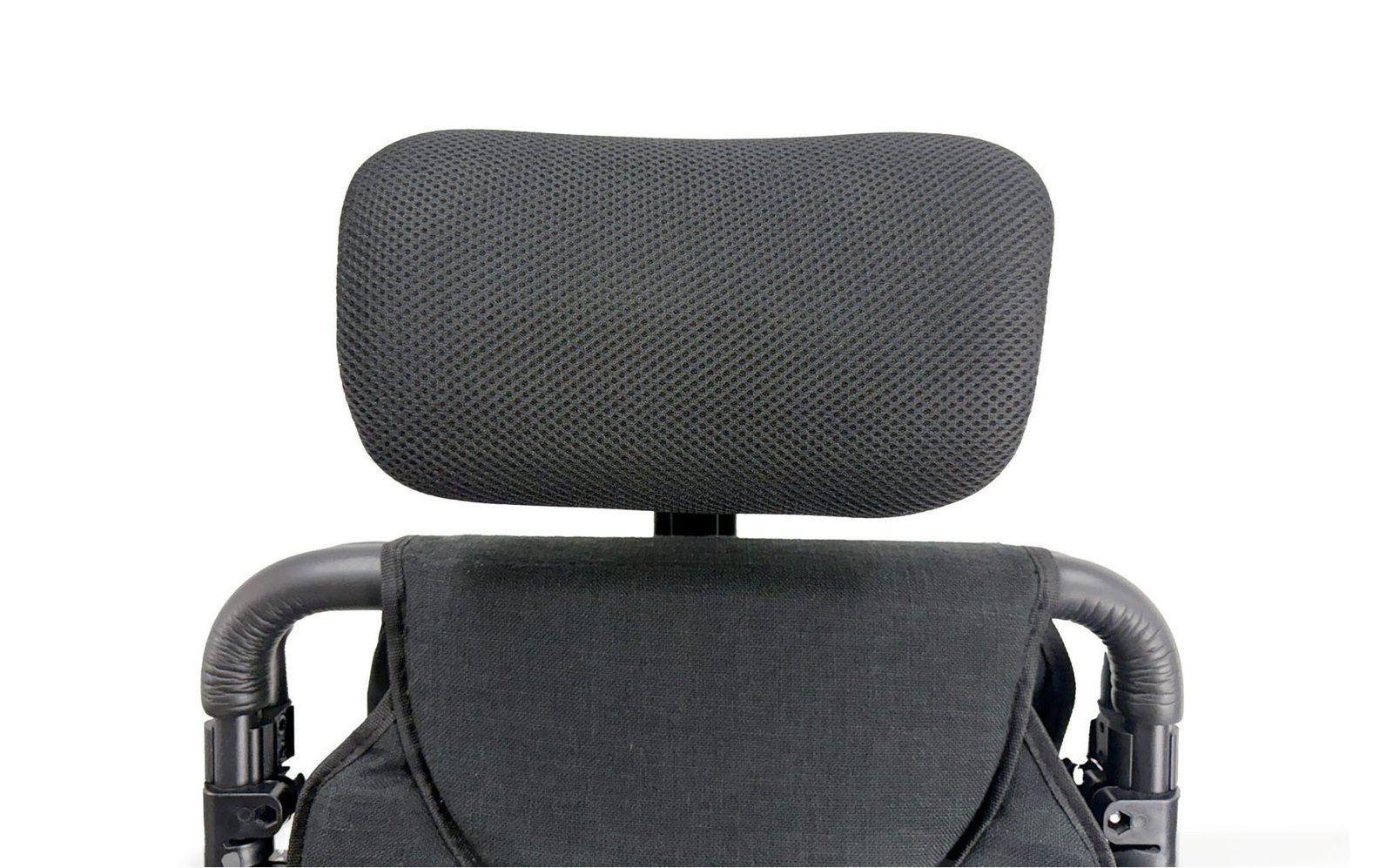

- Includes safety belt, anti-tippers and headrest
- Optional accessories: back and seat rests (various sizes/shapes), footplate, umbrella, light, cup holder, phone holder (sold separately)
Specifications
| Overall Width | 600 mm |
|---|
| Overall Length | 720 mm |
|---|
| Internal Seat Width | 450 mm |
|---|
| Internal Seat Depth | 460 mm |
|---|
| Backrest Height | 500 mm, 660 mm (including headrest) |
|---|
| Backrest Recline Angle | 90–160° |
|---|
| Seat Height | 480 mm |
|---|
| Caster Size | 8-inch front and 12-inch rear |
|---|
| SWL | 136 kg |
|---|
| Product Weight (Net) | 29 kg |
|---|
| Motor | 250W brushless |
|---|
| Battery | 24V 20Ah lithium |
|---|
| Max Speed | 6 km/h |
|---|
| Max Range | 26 km |
|---|
| SKU | 05898 |
|---|
| Brand | Pinnacle |
|---|
Shipping
| Shipping Weight | 36.0 kg |
|---|
| Shipping Width | 0.470 m |
|---|
| Shipping Height | 0.840 m |
|---|
| Shipping Length | 0.660 m |
|---|
| Shipping Cubic | 0.260568 m³ |
|---|
Warranty
| Frame | 2 Years |
|---|
| Motors | 1 Year |
|---|
| Controller & Control box | 1 Year |
|---|
| Battery | 1 Year |
|---|
